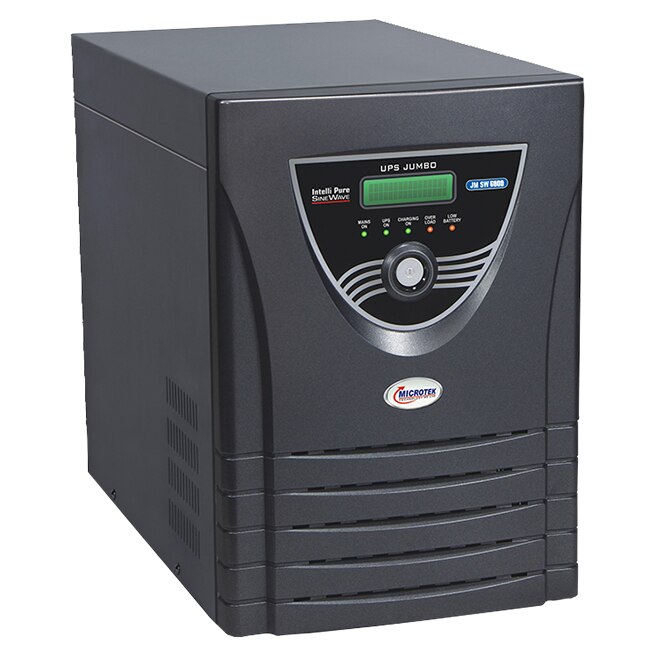

Microtek Inverter JM SW 6000/72V

MICROTEK UPS JM SW 6000/72V

Microtek UPS JM SW is Jumbo Sinewave High Capacity Series Models with Intelli Pure Sinewave Technology which ensures Noiseless, Safe and Efficient Performance.

UPS Jumbo High Capacity Models

DESCRIPTION

It is Static UPS with LCD Display. Pure Sinewave Output. Micro Processor Based PWM Technology using Hi-Grade Mosfets. Advanced Battery Management (ABM) for Longer Battery Life & Quick Changing.

Rated Capacity 5.7 KVA

Output Power 4560 Watts

Battery 6 Battery System (72 VDC)

Waveform Pure Sinewave

Warranty 2 Years

Dimensions (LxWxH) in mm 585x355x505

Gross Weight 48 KG

Key features

Micro Processor based PWM Technology using Hi-Grade Mosfets.Pure Sinewave UPS.

Static UPS with LCD Display.Pure Sinewave Output.

Advanced Battery Management (ABM) for Longer Battery Life & Quick Charging.

Smart Overload Sense, Short Circuit and Over Temperature Protection.

Safely suited to run Computers & Other IT Applications.

Generator Compatible.

TECHNICAL SPECIFICATIONS

INPUT Input Voltage (Standard range)110 V ~ 280 V

Input Voltage (Narrow range)180V ~ 260 V

OUTPUT

Output Voltage (Mains Mode)Same as Input

Output Voltage (UPS Mode)180~230 V (± 10V)

Output Waveform (Mains Mode)Same as Input

Output Waveform (UPS Mode)Pure Sinewave

CHANGEOVER

Switchover from Mains to UPS and UPS to MainsAutomatic

UPS Transfer Time? 15 msec.

TECHNOLOGY

Design Micro Controller Based Design

Battery Charging Current 17 Amps ± 3 Amps

UPS Overload / UPS Short-circuit ?110% / ? 300%

Browns on Mains Voltage 100V ± 10V

Efficiency (Battery Mode) > 80%

Auto Reset Feature Yes

Input DC Range 63 V ~ 85.2 V

Air Conditioner TDR Upto 2.0 Tons
