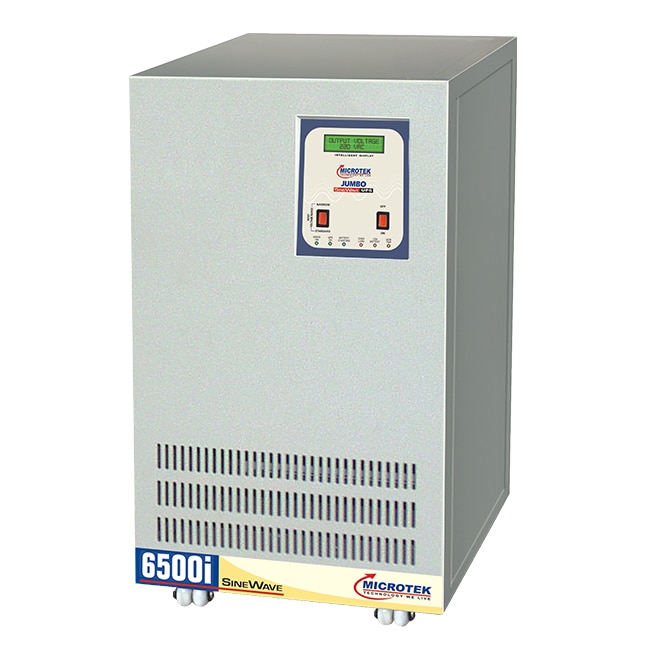

Microtek Inverter JM SW 6500i/96V

MICROTEK UPS JM SW 6500I/96V

Microtek UPS JM SW is Jumbo Sinewave High Capacity Series Models with Intelli Pure Sinewave Technology which ensures Noiseless, Safe and Efficient Performance.

Category:UPS Jumbo High Capacity Models

DESCRIPTION

It is Micro Processor based PWM technology using Hi-Grade IGBT’s with Peak Current Handling Capacity and Static UPS with LCD Display.It has In-built Time Delay Relay and Advanced Battery Management for Longer Battery Life and Quick Charging.

Rated Capacity 5.5 KVA

Output Power 4400 Watts

Battery8 Battery System (96 VDC)

Waveform Pure Sinewave

Warranty 2 Years

Key features

Advanced Battery Management (ABM) for Longer Battery Life and Quick Charging

Micro Processor based PWM Technology using Hi-Grade IGBT’s

LED & LCD Display Indications.

Best Suited for most High Capacity Sophisticated Applications.

Generator Compatible.

In-built Time Delay Relay (TDR).

Display

MAINS ON

UPS ON

BATTERY CHARGING

OVERLOAD

LOW BATTERY

MCB TRIP

TECHNICAL SPECIFICATIONS

INPUT

Standard Input Voltage Range100 V ~ 280 V

Narrow Input Voltage Range180 V ~ 265 V

OUTPUT

Output Voltage (Mains Mode)Same as Input

Output Voltage (UPS Mode)220V ± 10%

Output Waveform (Mains Mode)Same as Input

Output Waveform (UPS Mode)Pure Sinewave

CHANGEOVER

Switchover from Mains to UPS and UPS to MainsAutomatic

UPS Transfer Time? 15 msec.

TECHNOLOGY

UPS Overload / UPS Short-Circuit 105%~125%(4 Times Auto Reset) / 300%

Efficiency (Battery Mode) > 80%

Total Harmonic Distortion(Resistive Load) Less than 3%

Auto Reset Feature Yes

Input DC Range 84 ~ 114 V ± 1 Volt

Maximum Charging Current 16 Amps(Settable ± 3 Amps)

Auto Reset Feature Yes

Separate Output with TDR 1 minute TDR

Operating Temperature 0 to 45° C
