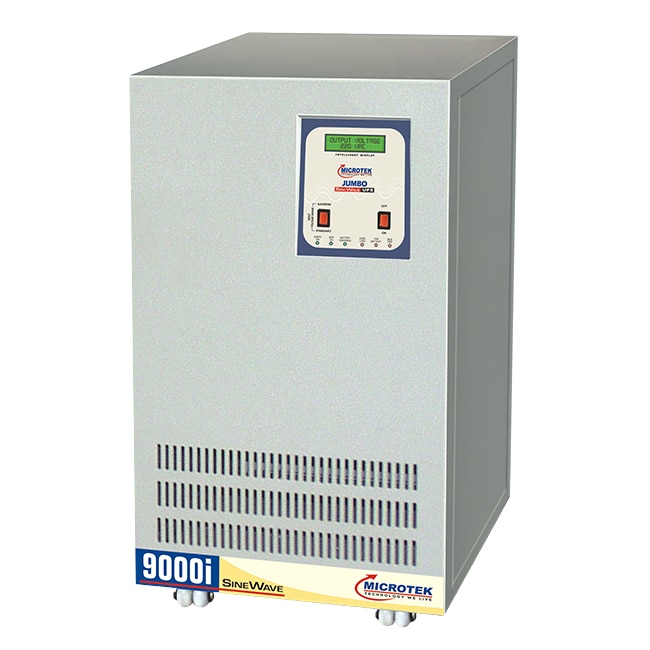

Microtek Inverter JM SW 9000i/120V

MICROTEK UPS JM SW 9000I/120V

Microtek UPS JM SW is Jumbo Sinewave High Capacity Series Models with Intelli Pure Sinewave Technology which ensures Noiseless, Safe and Efficient Performance.

Category:UPS Jumbo High Capacity Models

DESCRIPTION

It is Micro Processor based PWM technology using Hi-Grade IGBT’s with Peak Current Handling Capacity and Static UPS with LCD Display.It has In-built Time Delay Relay and Advanced Battery Management for Longer Battery Life and Quick Charging.

Rated Capacity 8 KVA

Output Power 6400 Watts

Battery 10 Battery System (120 VDC)

Waveform Pure Sinewave

Warranty 2 Years

Key features

Advanced Battery Management (ABM) for Longer Battery Life and Quick Charging

Micro Processor based PWM Technology using Hi-Grade IGBT’s

LED & LCD Display Indications.

Best Suited for most High Capacity Sophisticated Applications.

Generator Compatible.

In-built Time Delay Relay (TDR).

Display

MAINS ON , UPS ON , BATTERY CHARGING , OVERLOAD , LOW BATTERY , MCB TRIP

TECHNICAL SPECIFICATIONS

INPUT

Standard Input Voltage Range 100 V ~ 280 V

Narrow Input Voltage Range 180 V ~ 265 V

OUTPUT

Output Voltage (Mains Mode) Same as Input

Output Voltage (UPS Mode) 220V ± 10%

Output Waveform (Mains Mode) Same as Input

Output Waveform (UPS Mode) Pure Sinewave

CHANGEOVER

Switchover from Mains to UPS and UPS to Mains Automatic

UPS Transfer Time ? 15 msec.

TECHNOLOGY

UPS Overload / UPS Short-Circuit 105%~125%(4 Times Auto Reset) / 300%

Efficiency (Battery Mode) > 80%

Total Harmonic Distortion(Resistive Load) Less than 3%

Auto Reset Feature Yes

Input DC Range 105 ~ 142 V ± 1 Volt

Maximum Charging Current 16 Amps(Settable ± 3 Amps)

Auto Reset Feature Yes

Separate Output with TDR 1 minute TDR

Operating Temperature 0 to 45° C

* Load may vary depending on the condition of the Appliances or Manufacturers Specs.

* Specifications are subject to change without notice. The Company does not take liability for consequential damages.
